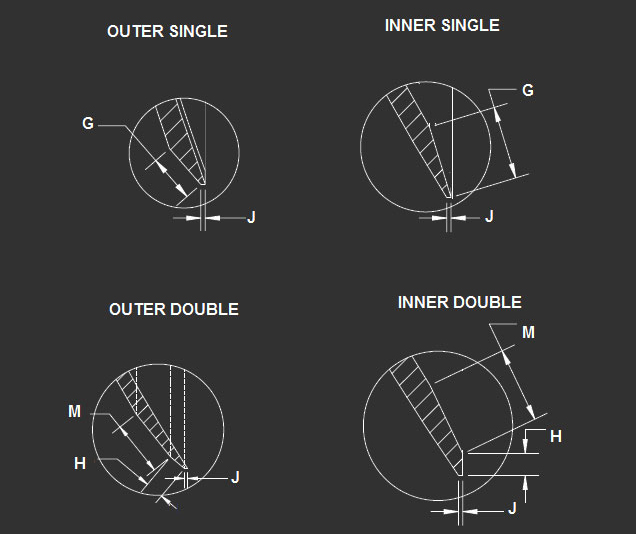

Thickness
|
Bevel length
|
Bevel length
|
Land
|
|
|
SINGLE
|
DOUBLE
|
|
|
MM
|
INNER
|
OUTER
|
INNER
|
OUTER
|
MM
|
|
|
G
|
G
|
(M + H)
|
(M + H)
|
J
|
|
3
|
-
|
8
|
-
|
-
|
0.8
|
|
3.5
|
-
|
9
|
-
|
-
|
0.8
|
|
4
|
10
|
10
|
-
|
-
|
1
|
|
4.5
|
10
|
10
|
-
|
-
|
1
|
|
5
|
11
|
11
|
5 + 15
|
7 + 18
|
1.2
|
|
6
|
13
|
13
|
5 + 15
|
7 + 18
|
1.2
|
|
7
|
14
|
14
|
5 + 15
|
7 + 18
|
1.2
|
|
8
|
-
|
15
|
5 + 15
|
7 + 18
|
1.2
|
|
10
|
-
|
19
|
5 + 15
|
7 + 18
|
1.5
|
*Special Bevel also can made on demand
